Pygame屏幕绘制机制与窗口感知和刷新运用

Posted on | In , | |
Words count in article: 1.2k | Reading time ≈ 6

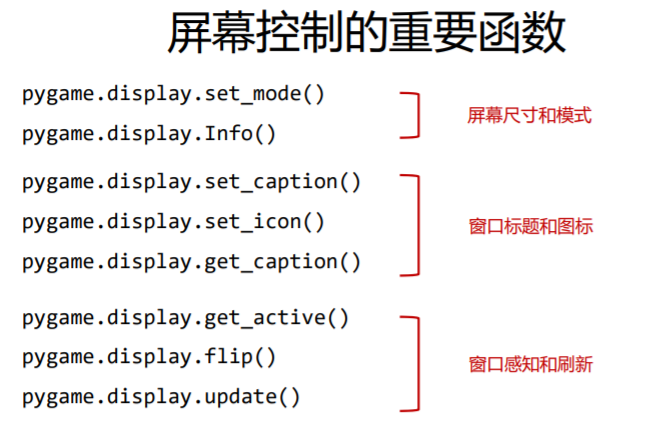

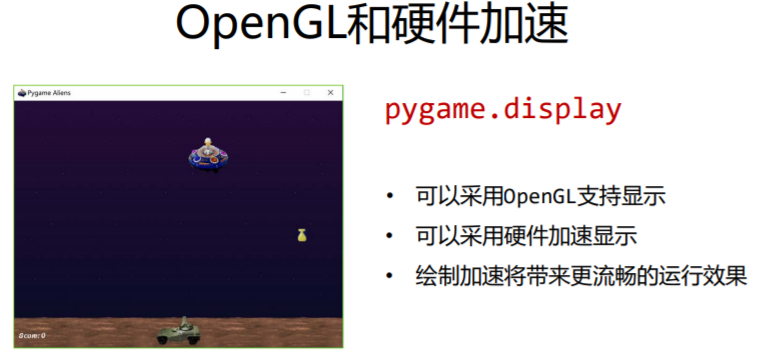

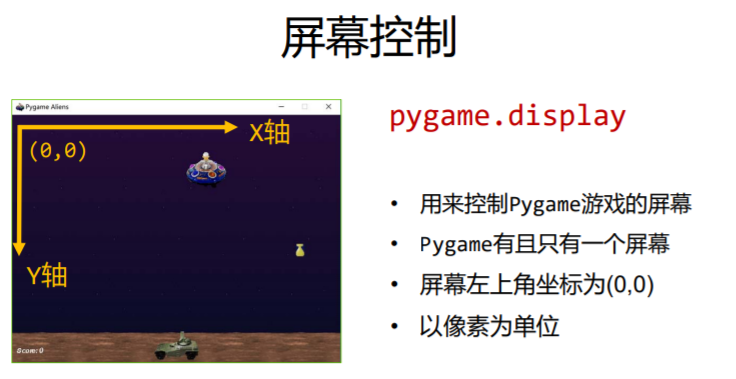

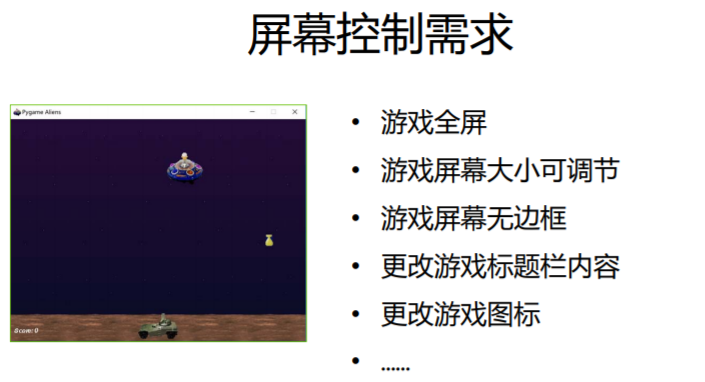

Pygame屏幕绘制机制

1

1

1

1

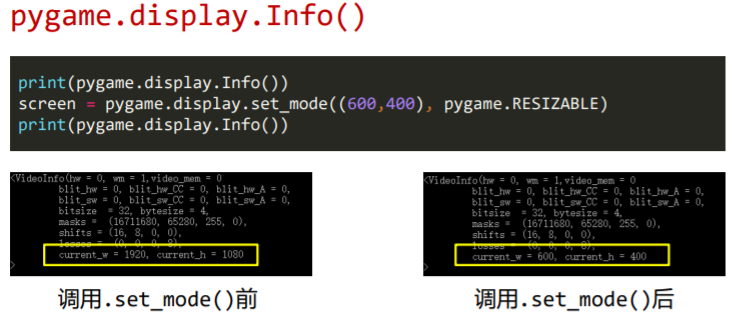

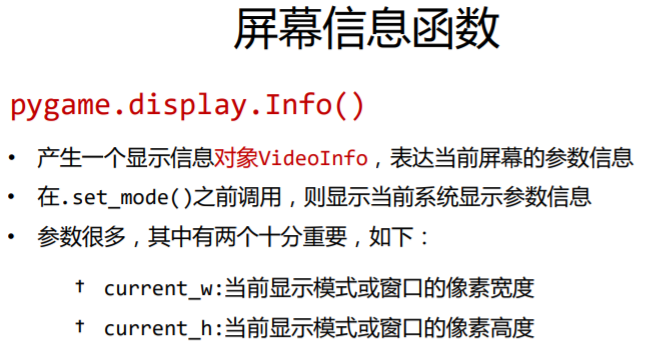

Pygame屏幕尺寸和模式设置

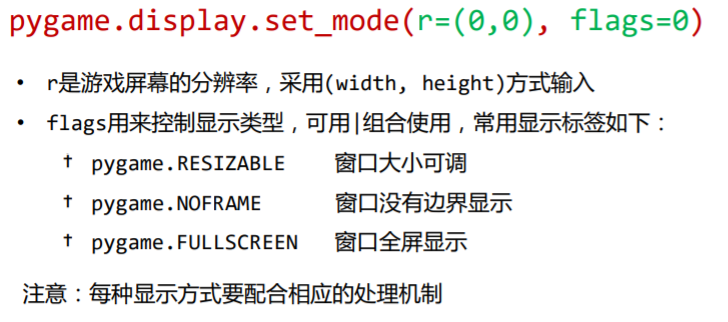

屏幕模式函数

1

屏幕设置大小可调时候要有尺寸变化的响应： 对扩张显示界面的刷新； 对扩张/缩小显示界面的游戏相应

屏幕设置为无边框时候要增加其他推出方式

屏幕设置为全屏是要考虑系统分辨率，否则将会按照用户设定被拉伸

1

1

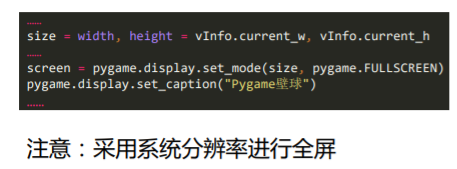

壁球小游戏（全屏型）

1

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
# Unit PYG03: Pygame Wall Ball Game version 4  全屏型
import pygame,sys

pygame.init()
vInfo = pygame.display.Info()   #窗口全屏显示
size = width, height = vInfo.current_w, vInfo.current_h
speed = [1,1]
BLACK = 0, 0, 0
#print(pygame.display.Info())
#screen = pygame.display.set_mode(size, pygame.RESIZABLE)  #窗口大小可调
#screen = pygame.display.set_mode(size, pygame.NOFRAME)  #窗口无边框
screen = pygame.display.set_mode(size, pygame.FULLSCREEN)  #窗口全屏显示

pygame.display.set_caption("Pygame壁球")
ball = pygame.image.load("PYG02-ball.gif")
ballrect = ball.get_rect()
fps = 300
fclock = pygame.time.Clock()

while True:
    for event in pygame.event.get():
        if event.type == pygame.QUIT:
            sys.exit()
        elif event.type == pygame.KEYDOWN:
            if event.key == pygame.K_LEFT:
                speed[0] = speed[0] if speed[0] == 0 else (abs(speed[0]) - 1)*int(speed[0]/abs(speed[0]))
            elif event.key == pygame.K_RIGHT:
                speed[0] = speed[0] + 1 if speed[0] > 0 else speed[0] - 1
            elif event.key == pygame.K_UP:
                speed[1] = speed[1] + 1 if speed[1] > 0 else speed[1] - 1
            elif event.key == pygame.K_DOWN:
                speed[1] = speed[1] if speed[1] == 0 else (abs(speed[1]) - 1)*int(speed[1]/abs(speed[1]))
            elif event.key == pygame.K_ESCAPE:
                sys.exit()
    ballrect = ballrect.move(speed)
    if ballrect.left < 0 or ballrect.right > width:
        speed[0] = - speed[0]
    if ballrect.top < 0 or ballrect.bottom > height:
        speed[1] = - speed[1]

    screen.fill(BLACK)
    screen.blit(ball, ballrect)
    pygame.display.update()
    fclock.tick(fps)

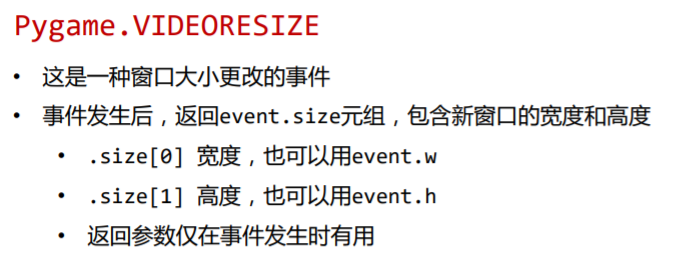

壁球小游戏(伸缩型)

1

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
# Unit PYG03: Pygame Wall Ball Game version 5  伸缩型
import pygame,sys

pygame.init()
size = width, height = 600, 400
speed = [1,1]
BLACK = 0, 0, 0
screen = pygame.display.set_mode(size, pygame.RESIZABLE)  #窗口大小可调
#screen = pygame.display.set_mode(size, pygame.NOFRAME)  #窗口无边框
#screen = pygame.display.set_mode(size, pygame.FULLSCREEN)  #窗口全屏显示

pygame.display.set_caption("Pygame壁球")
ball = pygame.image.load("PYG02-ball.gif")
ballrect = ball.get_rect()
fps = 300
fclock = pygame.time.Clock()

while True:
    for event in pygame.event.get():
        if event.type == pygame.QUIT:
            sys.exit()
        elif event.type == pygame.KEYDOWN:
            if event.key == pygame.K_LEFT:
                speed[0] = speed[0] if speed[0] == 0 else (abs(speed[0]) - 1)*int(speed[0]/abs(speed[0]))
            elif event.key == pygame.K_RIGHT:
                speed[0] = speed[0] + 1 if speed[0] > 0 else speed[0] - 1
            elif event.key == pygame.K_UP:
                speed[1] = speed[1] + 1 if speed[1] > 0 else speed[1] - 1
            elif event.key == pygame.K_DOWN:
                speed[1] = speed[1] if speed[1] == 0 else (abs(speed[1]) - 1)*int(speed[1]/abs(speed[1]))
            elif event.key == pygame.K_ESCAPE:
                sys.exit()
        elif event.type == pygame.VIDEORESIZE:
            size = width, height = event.size[0], event.size[1]
            screen = pygame.display.set_mode(size, pygame.RESIZABLE)
    ballrect = ballrect.move(speed)
    if ballrect.left < 0 or ballrect.right > width:
        speed[0] = - speed[0]
    if ballrect.top < 0 or ballrect.bottom > height:
        speed[1] = - speed[1]

    screen.fill(BLACK)
    screen.blit(ball, ballrect)
    pygame.display.update()
    fclock.tick(fps)

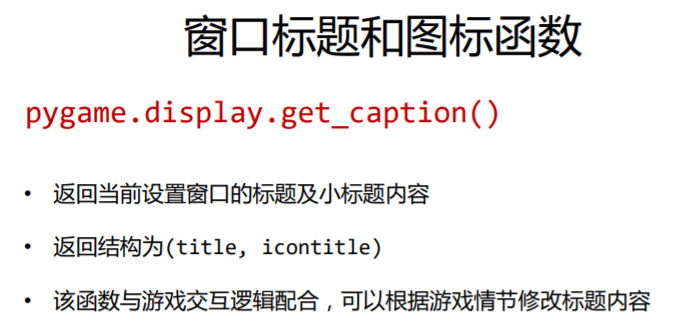

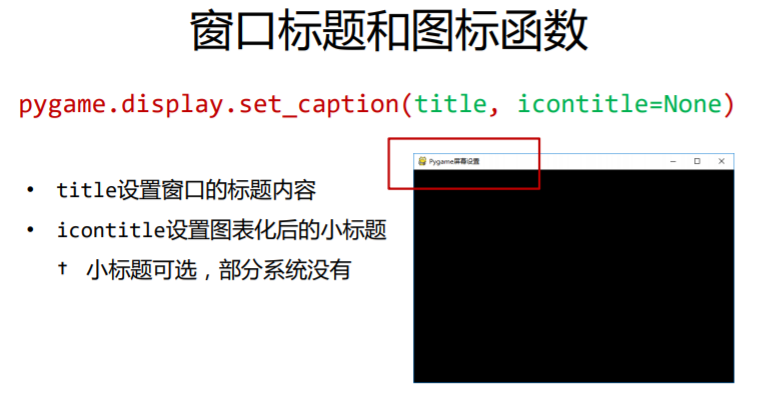

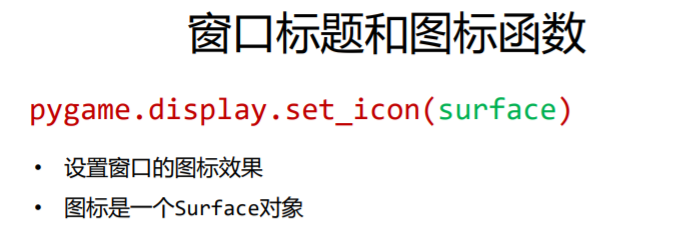

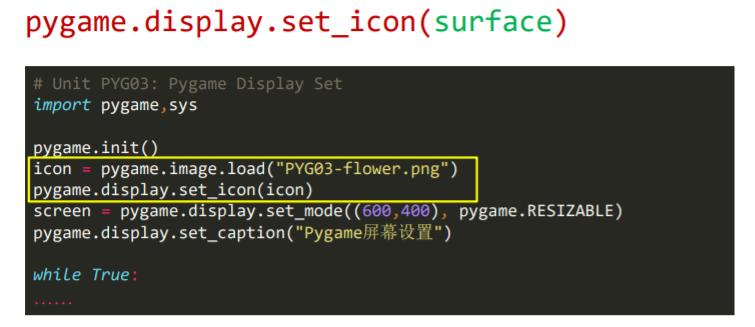

Pygame窗口标题和图标设置

1

1

1

1

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
# Unit PYG03: Pygame Wall Ball Game version 6  图标型
import pygame,sys

pygame.init()
size = width, height = 600, 400
speed = [1,1]
BLACK = 0, 0, 0
screen = pygame.display.set_mode(size, pygame.RESIZABLE)  #窗口大小可调

icon = pygame.image.load("PYG03-flower.png")
pygame.display.set_icon(icon)
pygame.display.set_caption("Pygame壁球")
ball = pygame.image.load("PYG02-ball.gif")
ballrect = ball.get_rect()
fps = 300
fclock = pygame.time.Clock()

while True:
    for event in pygame.event.get():
        if event.type == pygame.QUIT:
            sys.exit()
        elif event.type == pygame.KEYDOWN:
            if event.key == pygame.K_LEFT:
                speed[0] = speed[0] if speed[0] == 0 else (abs(speed[0]) - 1)*int(speed[0]/abs(speed[0]))
            elif event.key == pygame.K_RIGHT:
                speed[0] = speed[0] + 1 if speed[0] > 0 else speed[0] - 1
            elif event.key == pygame.K_UP:
                speed[1] = speed[1] + 1 if speed[1] > 0 else speed[1] - 1
            elif event.key == pygame.K_DOWN:
                speed[1] = speed[1] if speed[1] == 0 else (abs(speed[1]) - 1)*int(speed[1]/abs(speed[1]))
            elif event.key == pygame.K_ESCAPE:
                sys.exit()
        elif event.type == pygame.VIDEORESIZE:
            size = width, height = event.size[0], event.size[1]
            screen = pygame.display.set_mode(size, pygame.RESIZABLE)
    ballrect = ballrect.move(speed)
    if ballrect.left < 0 or ballrect.right > width:
        speed[0] = - speed[0]
    if ballrect.top < 0 or ballrect.bottom > height:
        speed[1] = - speed[1]

    screen.fill(BLACK)
    screen.blit(ball, ballrect)
    pygame.display.update()
    fclock.tick(fps)

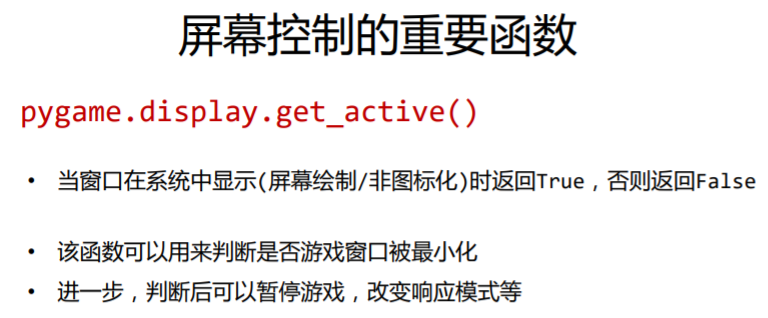

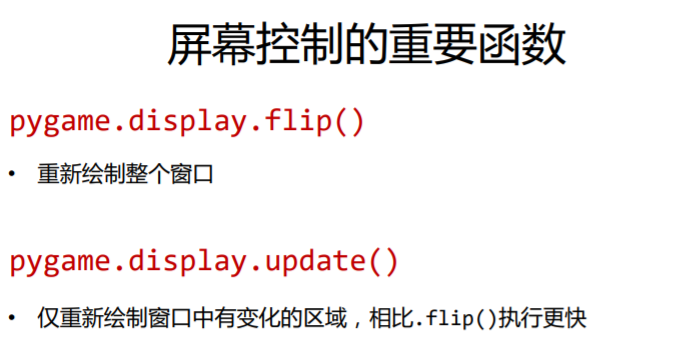

Pygame窗口感知和刷新运用

1

1

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
# Unit PYG03: Pygame Wall Ball Game version 7  感知型
import pygame,sys

pygame.init()
size = width, height = 600, 400
speed = [1,1]
BLACK = 0, 0, 0
screen = pygame.display.set_mode(size, pygame.RESIZABLE)  #窗口大小可调

icon = pygame.image.load("PYG03-flower.png")
pygame.display.set_icon(icon)
pygame.display.set_caption("Pygame壁球")
ball = pygame.image.load("PYG02-ball.gif")
ballrect = ball.get_rect()
fps = 300
fclock = pygame.time.Clock()

while True:
    for event in pygame.event.get():
        if event.type == pygame.QUIT:
            sys.exit()
        elif event.type == pygame.KEYDOWN:
            if event.key == pygame.K_LEFT:
                speed[0] = speed[0] if speed[0] == 0 else (abs(speed[0]) - 1)*int(speed[0]/abs(speed[0]))
            elif event.key == pygame.K_RIGHT:
                speed[0] = speed[0] + 1 if speed[0] > 0 else speed[0] - 1
            elif event.key == pygame.K_UP:
                speed[1] = speed[1] + 1 if speed[1] > 0 else speed[1] - 1
            elif event.key == pygame.K_DOWN:
                speed[1] = speed[1] if speed[1] == 0 else (abs(speed[1]) - 1)*int(speed[1]/abs(speed[1]))
            elif event.key == pygame.K_ESCAPE:
                sys.exit()
        elif event.type == pygame.VIDEORESIZE:
            size = width, height = event.size[0], event.size[1]
            screen = pygame.display.set_mode(size, pygame.RESIZABLE)
    if pygame.display.get_active():
        ballrect = ballrect.move(speed)
    if ballrect.left < 0 or ballrect.right > width:
        speed[0] = - speed[0]
    if ballrect.top < 0 or ballrect.bottom > height:
        speed[1] = - speed[1]

    screen.fill(BLACK)
    screen.blit(ball, ballrect)
    pygame.display.update()
    fclock.tick(fps)
